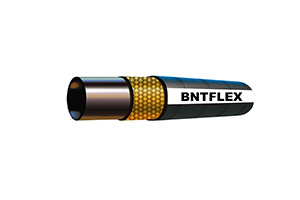

MANGUERA HIDRÁULICA ESPIRAL DE ALAMBRE DE ACERO PARA MING

STEEL WIRE SPIRAL HYDRAULIC HOSE FOR MING

Applications:Suitable for hydraulic support in the field of mining,deliverying petroleum and water based hydraulic fluids.Temperature range:-40℃~+121℃.

Constructions:This hose consists of special synthetic rubber with heat resistance, the reinforcement with high tensile steel wire,and cloth or wrapped cover with black color.According to the standards of mT/T98-2003.

TYPE	HOSE SIZE			R.O.D		O.D		MAX W.P.	MIN B.P	MIN B.R	LENGTH	WEIGHT
	dash	mm	inch	min	max	min	max	Mpa	Mpa	mm	m	Kg/m
1004	-6	10	3/8˝	18.2	19.8	22.0	24.0	70.0	210.0	180	50/20	1.06
1304	-8	13	1/2˝	21.4	23.0	25.5	27.5	57.0	171.0	210	40/20	1.25
1604	-10	16	5/8˝	25.2	26.8	29.0	31.0	53.0	159.0	260	40/20	1.56
1904	-12	19	3/4˝	29.2	30.8	32.5	35.5	46.0	138.0	280	40/20	1.91
2204	-14	22	7/8˝	32.2	33.8	36.5	39.5	41.0	123.0	320	40/20	2.12
2504	-16	25	1˝	35.2	36.8	39.5	42.5	35.0	105.0	360	40/20	2.33
3204	-20	32	1-1/4˝	43.2	44.8	47.5	50.5	32.0	96.0	460	40/20	2.94
3804	-24	38	1-1/2˝	49.8	51.8	54.5	57.5	25.0	75.0	560	40/20	3.96
4504	-28	45	1-3/4˝	56.8	58.8	61.5	64.5	21.0	63.0	640	40/20	4.54
5104	-32	51	2˝	62.8	64.8	67.5	70.5	21.0	63.0	720	40/20	5.06

TYPE	HOSE SIZE			R.O.D		O.D		MAX W.P.	MIN B.P	MIN B.R	LENGTH	WEIGHT
	dash	mm	inch	min	max	min	max	Mpa	Mpa	mm	m	Kg/m
1006	-6	10	3/8˝	20.0	22.0	24.0	26.0	80.0	240.0	180	50/20	1.40
1306	-8	13	1/2˝	23.8	25.8	28.5	30.5	70.0	210.0	210	40/20	1.74
1606	-10	16	5/8˝	28.0	30.0	31.5	34.5	72.0	216.0	260	40/20	2.10
1906	-12	19	3/4˝	32.0	34.0	35.5	38.5	52.0	156.0	280	40/20	2.23
2206	-14	22	7/8˝	35.0	37.0	39.5	42.5	53.0	159.0	320	40/20	2.80
2506	-16	25	1˝	38.0	40.0	42.5	45.5	44.0	132.0	360	40/20	3.18
3206	-20	32	1-1/4˝	46.0	48.0	50.5	53.5	38.0	114.0	460	40/20	3.80
3806	-24	38	1-1/2˝	52.8	54.8	57.5	60.5	35.0	105.0	560	40/20	4.39
4506	-28	45	1-3/4˝	59.8	61.8	64.5	67.5	32.0	96.0	640	40/20	5.02
5106	-32	51	2˝	66.2	68.2	71.5	74.5	30.0	90.0	720	40/20	5.98
